Partitions overview

Android devices contain several partitions or specific sections of storage space used to contain specific parts of the device's software. Each partition contains a partition image (an IMG file) or snapshot of all the software for the partition. Figure 1 shows the layout of core partitions on a device:

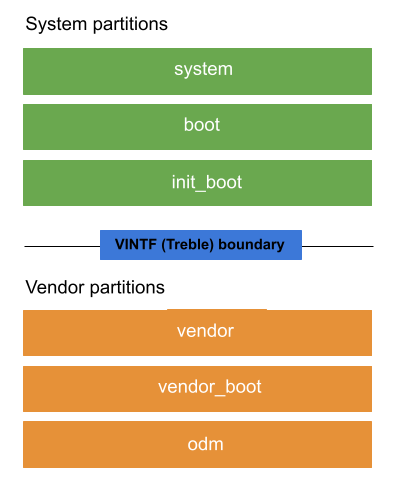

Layout of core partitions.

Figure 1. Layout of core partitions.

Partitions are classified in three categories:

System partitions are partitions that are updated when updating the OS and other features. The system, boot, and init_boot are core system partitions.
Vendor partitions contain device and hardware-specific code that might never be updated after initial release. The vendor, vendor_boot, and odm partitions are core vendor partitions.
Nonupdatable partitions are partitions whose contents are either not updated or updated with user data.

Code in system and vendor partitions can interact using a stable interface called the vendor interface (VINTF).

System partitions

Following is a list of all system partitions and their use:

boot partition. This partition contains a Generic Kernel Image (GKI). This partition also contains the generic ramdisk in devices launched in Android 12 and lower. For further information on generic ramdisk, see Generic ramdisk image contents.
init_boot partition (Android 13 and higher). This partition contains a generic ramdisk. In Android 11 and 12, the generic ramdisk is in the boot partition.
system partition. This partition contains the system image used for OEM products.
system_ext partition. This partition contains system resources and proprietary system modules that extend the common system image in the system partition.

Note: Single system image (SSI) refers to a file, such as a zip file that contains the images of the system and system_ext partitions and reuses those images across a set of target devices. For further information on SSI, see Android shared system image.
system_dlkm partition. This partition contains GKI modules. For further information on this partition, see Implement a GKI module partition.
product partition. This partition can contain product-specific modules that aren't bundled with any other partitions.

Note: The Vendor Native Development Kit (VNDK) is a set of libraries installed in the system partition and designed exclusively for vendors to implement their HALs. The product and vendor partitions can link to VNDK libraries in the system partition, but can't link to other libraries in the system partition.
pvmfw partition. This partition stores the Protected Virtual Machine Firmware (pvmfw) which is the first code that runs in protected VMs. For more information, see Protected Virtual Machine Firmware.
generic_bootloader partition. This partition contains the generic bootloader.

Vendor partitions

Following is a list of all vendor partitions and their use:

vendor_boot partition. This partition contains vendor-specific boot code. For more information, see Vendor boot partitions.
recovery partition. This partition stores the recovery image, which is booted during the over-the-air (OTA) update process. Devices that support seamless updates can store the recovery images as a ramdisk contained in the boot or init_boot image. For more information on seamless updates, see A/B (seamless) updates.
misc partition. This partition is used by the recovery partition and is 4 KB or larger.
vbmeta partition. This partition contains the Verified Boot information for all of the partitions. This information verifies that the images installed in each partition is trusted. For further information on Verified Boot, see Verified Boot.
vendor partition. This partition contains any binary that is vendor specific and not generic enough to distribute to AOSP.

Note: The Vendor Native Development Kit (VNDK) is a set of libraries installed in the system partition and designed exclusively for vendors to implement their HALs. The product and vendor partitions can link to VNDK libraries in the system partition, but can't link to other libraries in the system partition.
vendor_dlkm partition. This partition contains vendor kernel modules. By storing vendor kernel modules in this partition instead of the vendor partition, you can update kernel modules without updating the vendor partition. For more information, see Vendor and ODM DKLM partitions.
odm partition. This partition contains original design manufacturer (ODM) customizations to system-on-chip (SoC) vendor board-support packages (BSPs). Such customizations enable ODMs to replace or customize SoC components, and implement kernel modules for board-specific components, daemons, and ODM-specific features on hardware abstraction layers (HALs). This partition is optional. Typically this partition is used to contain customizations so that devices can use a single vendor image for multiple hardware SKUs. For more information, see ODM partitions.
odm_dlkm partition. This partition is dedicated to storing ODM kernel modules. By storing ODM kernel modules in the this partition, instead of the odm partition, you can update ODM kernel modules without updating the odm partition. For more information, see Vendor and ODM DKLM partitions.
radio partition. This partition contains the radio image and is needed only for devices that include a radio with radio-specific software in a dedicated partition.

Nonupdatable partitions

Following is a list of all nonupdatable partitions and their use:

cache partition. This partition contains temporary data and is optional if your device uses seamless updates. This partition doesn't need to be writable from the bootloader, but needs to be erasable. The partition size depends on the device type and the availability of space on userdata; typically, 50 to 100 MB is sufficient.
userdata partition. This partition contains user-installed apps and data, including customization data.
metadata partition. If your device uses metadata encryption, this partition contains the metadata encryption key. The size of this partition is 16 MB or larger, it isn't encrypted, and its data isn't snapshotted. This partition is erased when the device is factory reset.

Partition update rules and recommendations

We recommend updating all system partitions as a whole and all vendor partitions as another whole. By updating the set of partitions as a whole, you can test to verify the interfaces between images in each partition remain stable.

Regardless of how you update your partitions, the following partitions must be updated due to tightly coupled dependencies and lack of stable APIs:

The boot and system_dlkm partitions
the init_boot, system, system_ext, and product partitions

Dynamic partitions

Devices running Android 11 and higher can support dynamic partitions, which are a userspace partitioning system for Android that lets you create, resize, or destroy partitions during over-the-air (OTA) updates. For more information, see Dynamic partitions.

Soong product variants

The Soong build system uses image variants to split build dependencies. Native modules (/build/soong/cc) can mutate system process modules to the core variant and vendor process modules to the vendor variant; a module in one image variant can't link to other modules in a different image variant.

In Android 12 or higher, a system module with vendor_available: true creates a vendor variant in addition to the core variant. To create a product variant, product_available: true must be defined. Some VNDK libraries without product_available: true aren't available to product modules.
